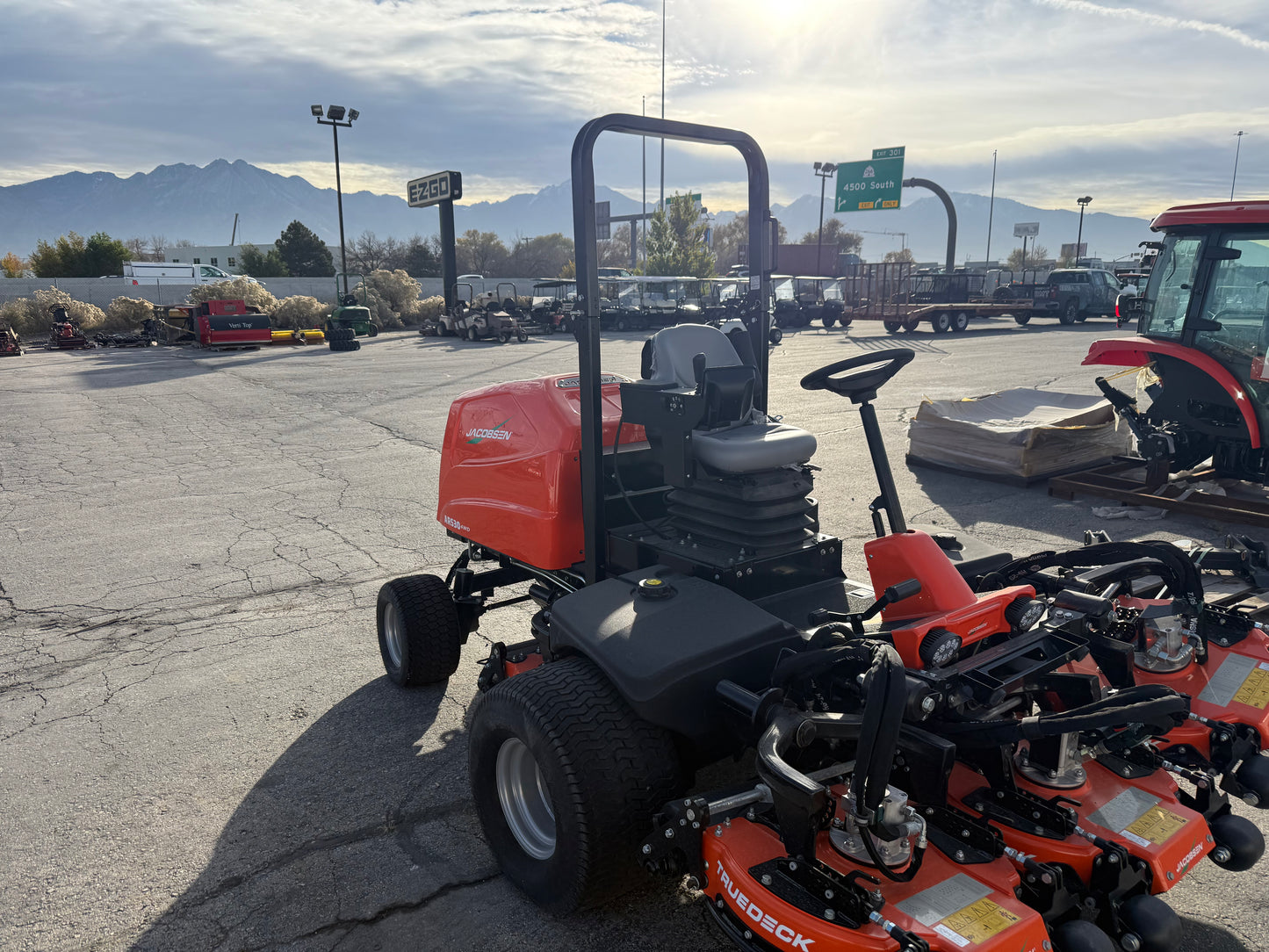

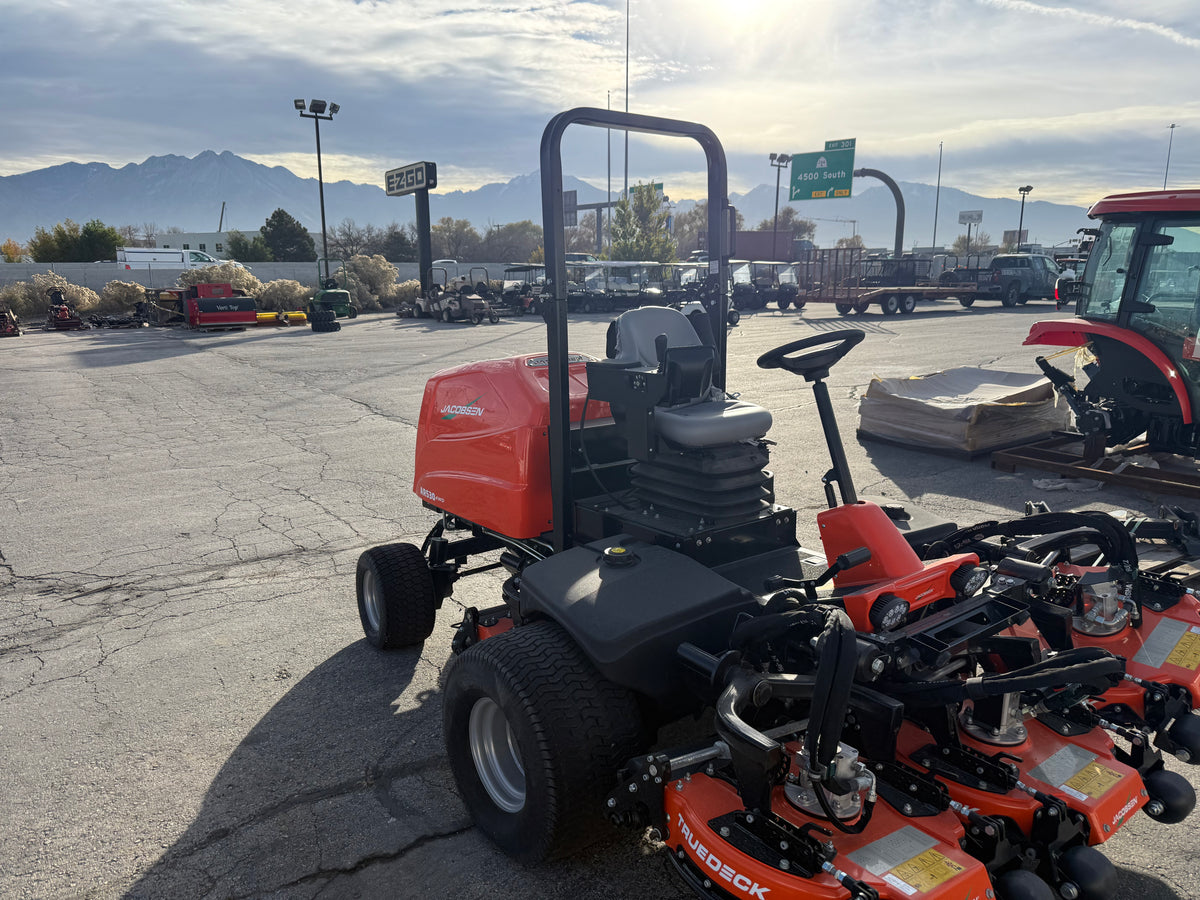

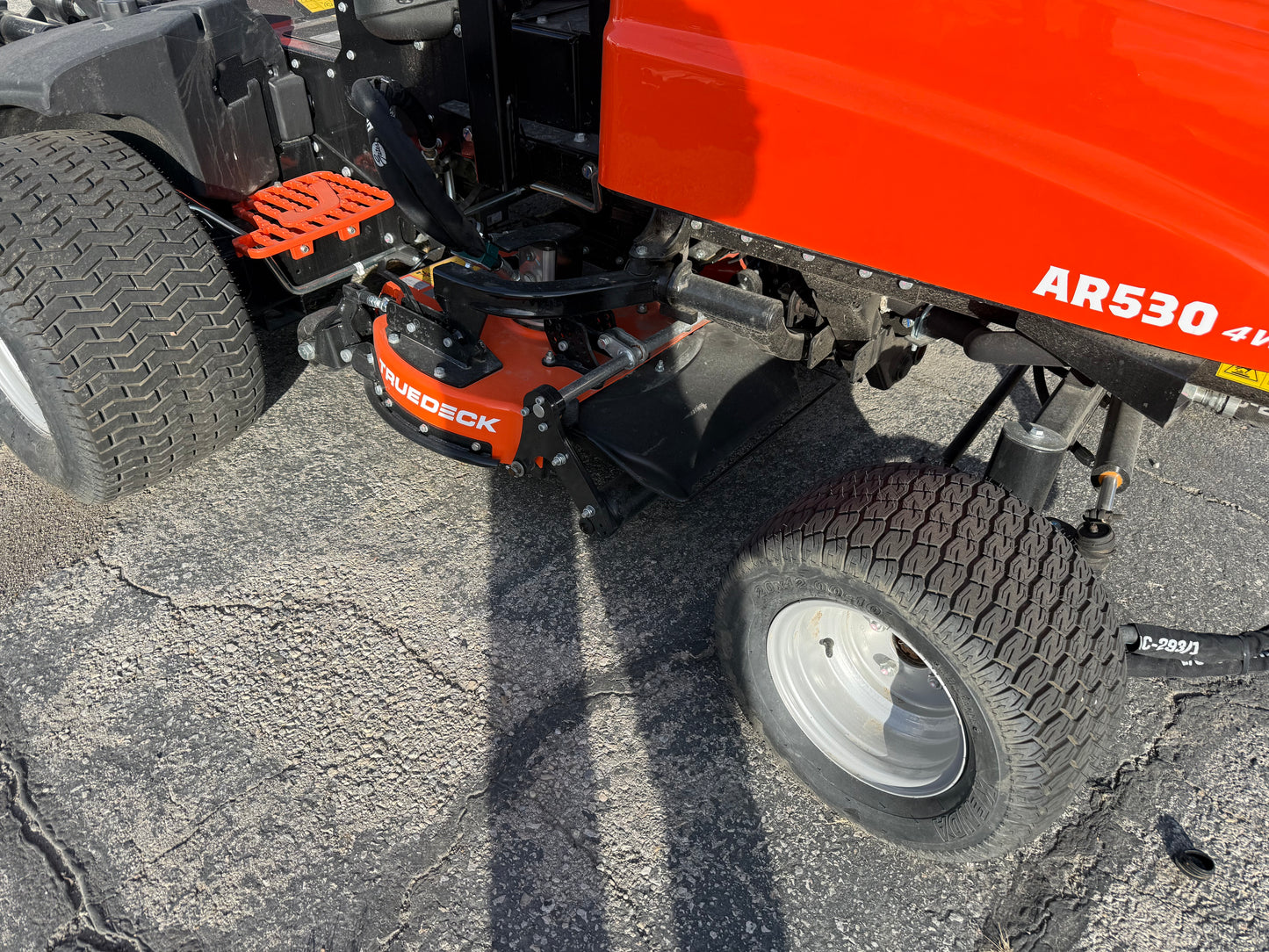

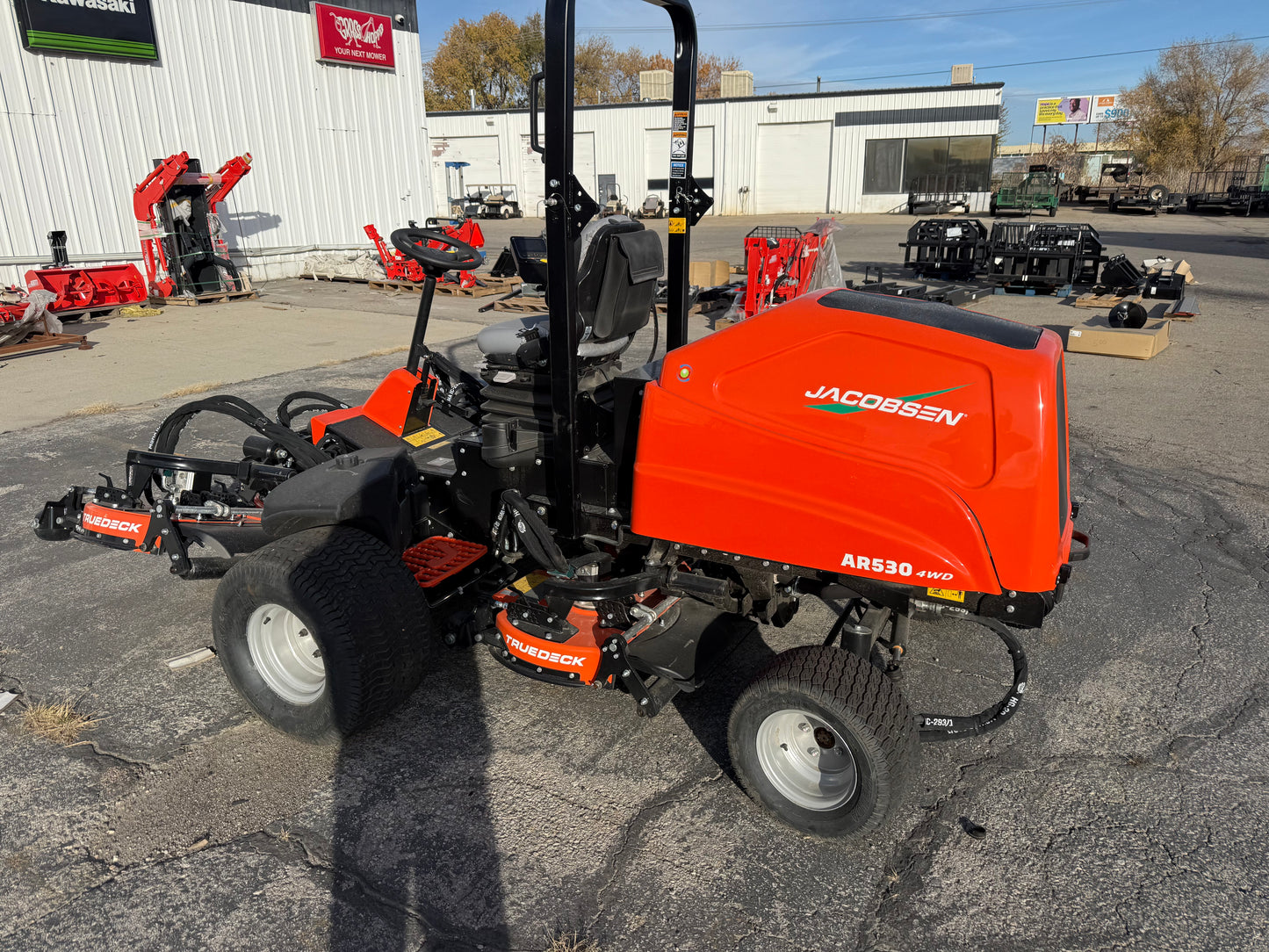

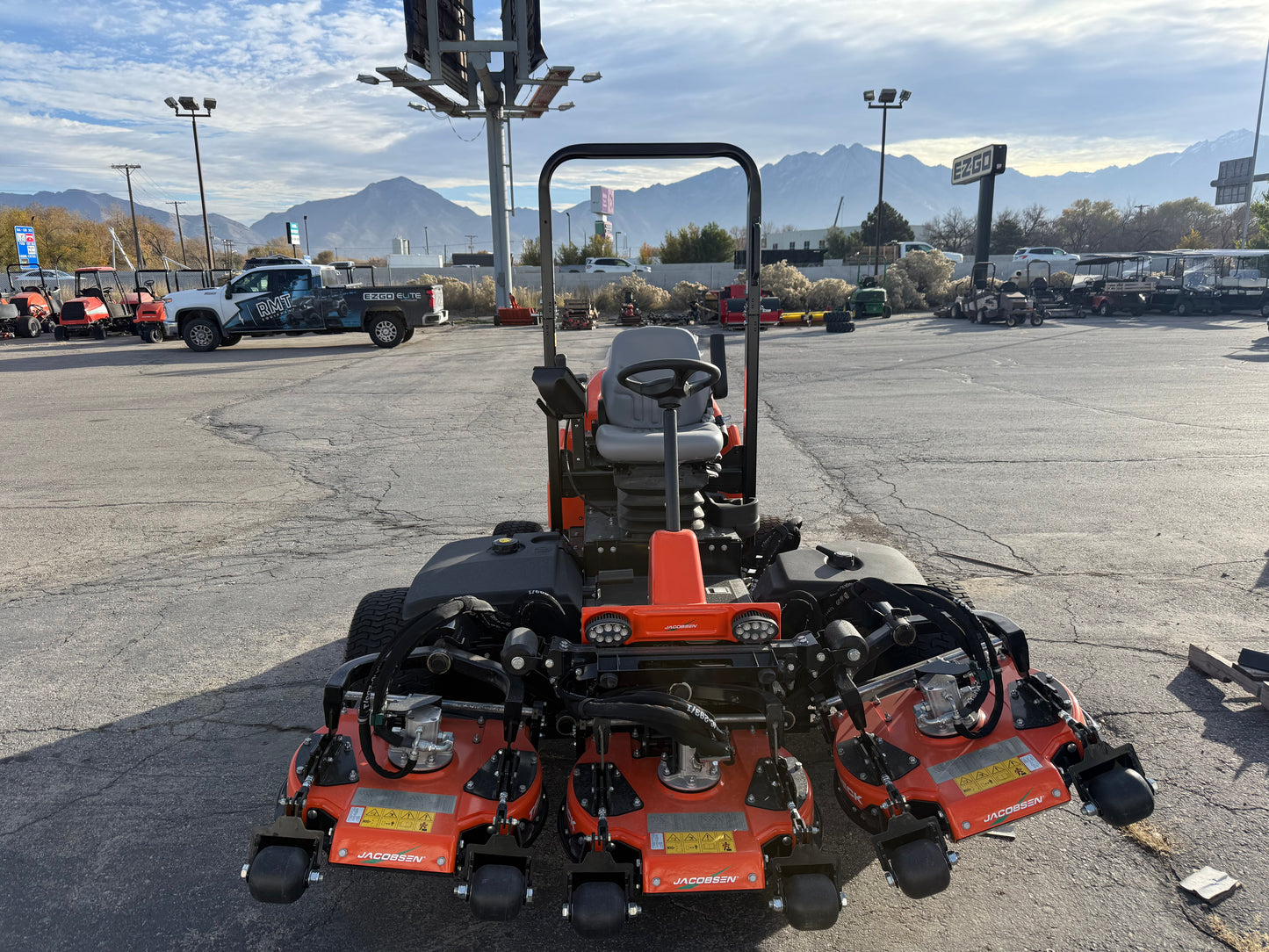

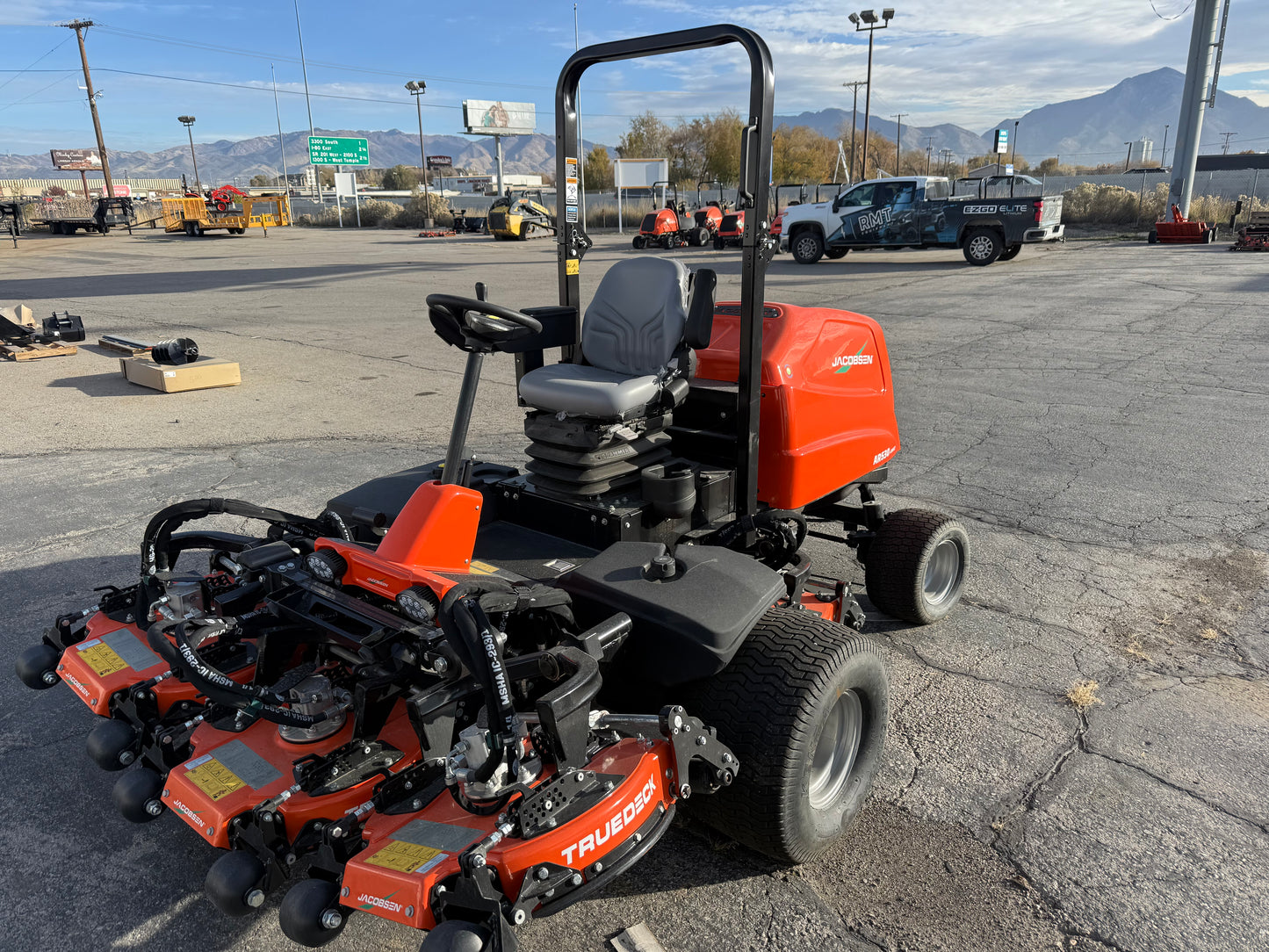

Jacobsen AR530 Articulated Contour Rotary Mower

Jacobsen AR530 Articulated Contour Rotary Mower

Unrivalled in maneuverability and traction, the Jacobsen AR530 is built for operators who demand precision, durability and top-tier performance across the most challenging terrains.

This mower features a full 50.2 HP Kubota® diesel engine and a versatile 90-inch cutting width, delivering the muscle and reach you need for large areas, while still offering contour-following control for uneven terrain.
With its articulating frame, heavy-duty TrueDeck™ contouring decks, and SureTrac II™ AWD traction system (featuring four high‐torque wheel motors), the AR530 offers exceptional turf protection, stability and responsiveness.
The mower comes equipped with five 23-inch rotary cutting units, hydraulic lift and lower of the deck via joystick for easy transport and maintenance, and adjustable hydraulic weight transfer that improves performance and cut consistency.

Key Features:

• 50.2 HP diesel engine for powerful, efficient operation

• 90-inch (2.3 m) cut width for wide coverage

• Cut height range from 0.75″ to 4.5″ (19 mm – 114 mm) in steps of 0.25″ (6 mm)

• Five TrueDeck™ 23″ rotary cutting units with rear discharge, smooth rear roller, optional mulching kit

• SureTrac II™ parallel hydrostatic AWD system ensures traction in difficult conditions, plus 2WD during transport/reverse

• Hydraulic deck lift & lower with hand-operated joystick; hydraulic weight transfer with automatic electronic activation

• Heavy-duty modular deck construction, full-flow hydraulic system (10 gallon capacity), wet parking brake, hydrostatic power steering

• Mowing speed up to 5.5 mph (8.8 kph); transport speed up to 9.3 mph (15 kph)

• Overall working width approx. 95.3″ (2.42 m); transport width approx. 88.6″ (2.25 m)

• Weight around 3,451 lb (1,565 kg) with full fluids

Why the AR530?
If you need a mower that combines the wide coverage of a professional rotary with the contour-following finesse of a turf vehicle built for rough terrain, the AR530 delivers. It’s designed for operators who insist on excellent finish quality, minimal scalping risk, and a machine that can handle rough ground, slopes and contours with confidence.

Contact us today to get pricing, availability and demo options on this commercial-grade mowing solution.
